OVERVIEW
Outdoor high brightness bus shelter is designed for outdoor advertising applications (DOOH) and Smart City solutions.

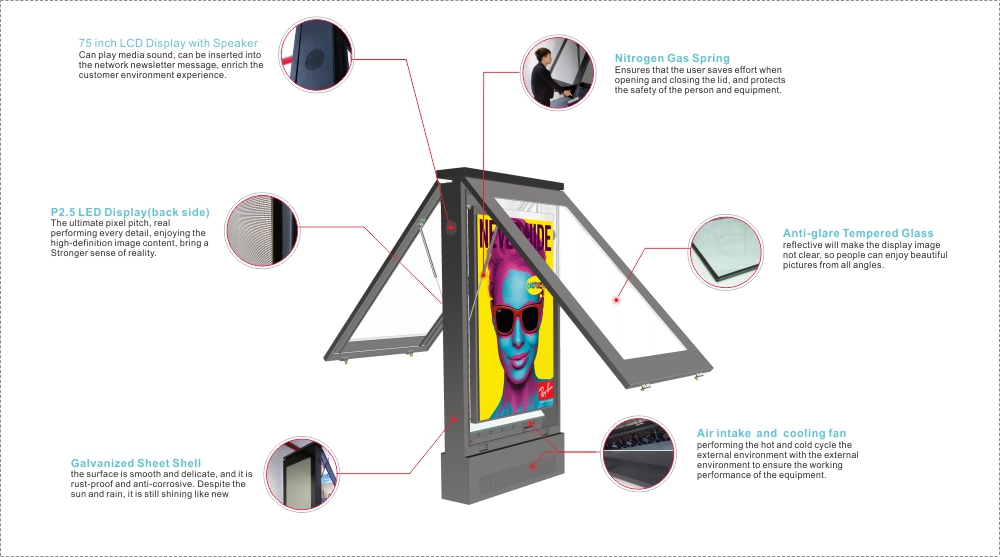

Designed both in single and double-face, and it offers unparalleled visibility in all weather con-ditions.The High-brightness up to 2500 nits, and the 1200:1contrast ratio of the panel, ensure deep contrasts and vivid colors even under direct sunlight. The 24/7 use of the display is guaranteed by the robust antivandal structure in galvanized steel, with a 4+4 mm anti reflection vandal proof frontal glass, and by the E-cooling technology, ensuring the operation inenvironmental temperature conditions from -20° to +50°.
The totems include a wide range of options available from touchscreen to proximity sensor, and our own software, for remote network management and monitoring.
APPLICATION
This kind of LCD display（High brightness LCD Digital Signage for Bus Station） is specialized used for for outdoor advertising applications (DOOH) and Smart City solutions.
CUSTOMER CASE

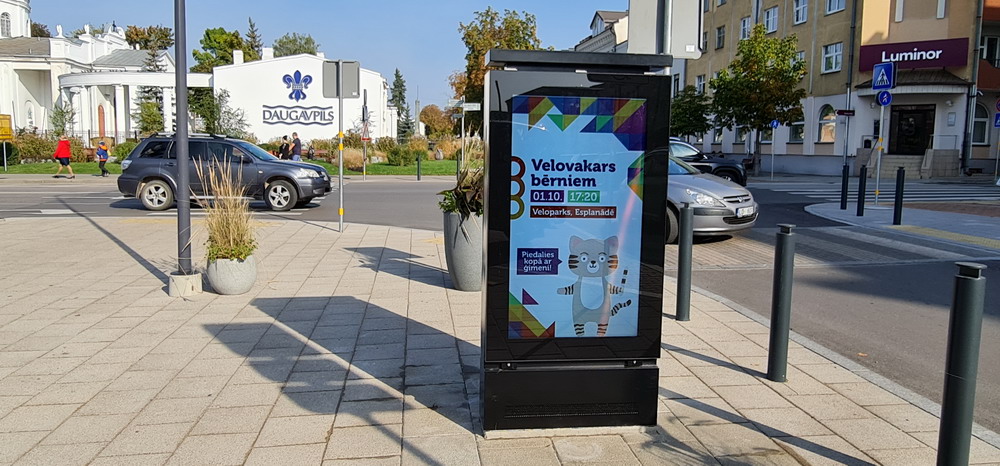

55 inches Outdoor high brightness bus shelter in Latvia
PARAMETER
| Model Number | YHAP550-OD02（55 inch） | YHAP750-OD02（75 inch） |
| Backlight | LED Backlight | LED Backlight |
| Active Display Area | 1209.6mm*680.4mm | 1649.66mm*927.936mm |
| Brightness | 2500cd/sqm | 2500cd/sqm |
| Brightness Control | Smart brightness control, could automatically adjust to the changing light brightness |
| Resolution | 1920*1080 | 1920*1080/3840*2160 |
| Aspect Ration | 16:9 | 16:9 |
| Contrast Ratio | 1200:1 | 1200:1 |
| Pixel pitch | 0.630(W)mm * 0.630(H)mm | 0.4296(W)mm * 0.4296(H)mm |
| Viewing angle | 89°/89°(L/R),89°/89°(U/D) | 89°/89°(L/R),89°/89°(U/D) |
| Display Color | 16.7M | 16.7M |
| Response time | 10ms | 12ms |
| Operating System | Windows 10, Android(Option) |
| Touch Panel | Capacitive touch screen(Option) |
| Input Interface | VGA, HDMI, USB, RJ-45, SDI,WIFI | HDMI, DVI |
| Cooling method | Air cooling cycle or industrial air conditioning |
| Working Voltage | AC100-240V 50/60Hz | AC100-240V 50/60Hz |
| Power Consumption | ≤750W (Average) | ≤1000W(Average) |
| Standby Consumption | 3W | 3W |
| Case | Galvanized sheet frame+ Bending welding of cold rolled steel + Power coating + AR Toughened glass |
| Dimension(W *H *D) | Depend on Customer Project | Depend on Customer Project |
| Operating Temperature | -20℃~50℃ | -20℃~50℃ |
| Storage Temperature | -30℃~60℃ | -30℃~60℃ |
Tag: High brightness LCD Digital Signage for Bus Station, Sunlight Readable Information Board, Customized High Brightness Outdoors LCD Screen
